Our cylinders

Our composite cylinders have set a new standard for user-friendly LPG with millions of units in use in close to 100 countries.

Hexagon Ragasco Product photo liggende

Built to last and bring unique benefits to both LPG marketers and users

Our cylinders are designed as the modern alternative to the steel cylinders. Suitable for a variety of applications, both industrial and for home-users or leisure activities, their advanced construction with polymeric and composite materials combines uncompromising safety, quality, design and innovation.

Benefits for companies

Increase and Protect your market share

Offering a customer-friendly cylinder helps you build customer preference and gives your business the possibility to attract new LPG users.

Improve your pricing power

With our composite LPG cylinders, you can add a Premium product to your portfolio and obtain a premium on refill.

Strenghten your Brand

Our aesthetically pleasing cylinders will help your business stand out. They can be customized with your company color and logo for a visual connection to your brand.

Reduce your Maintenance and Logistics costs

Our cylinders do not deteriorate nor require refurbishing. Lighter and stackable, they enable better truck utilization. Wear and tear in filling carrousel is minimized.

Increased Safety

Our cylinders do not BLEVE and have a 50% higher burst pressure than steel cylinders. The rust-free construction allows easier quality control and damage detection.

Benefits for users

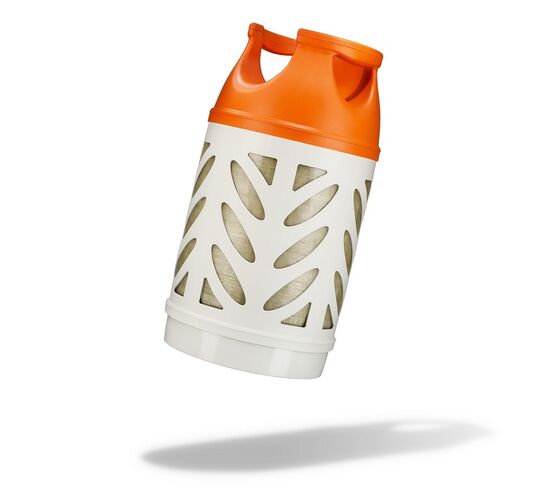

Lighter

Their lighter weight, approximately half of their steel counterparts, is one of their most user-friendly attributes, allowing users of both genders easier handling.

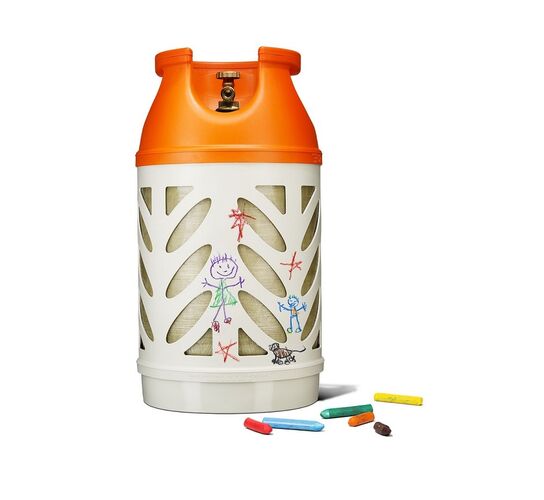

Safer

Our unmatched safety record is backed by over 20 million cylinders in use worldwide. BLEVE-free, safer to handle and suitable for weather conditions ranging from –40C to +65C.

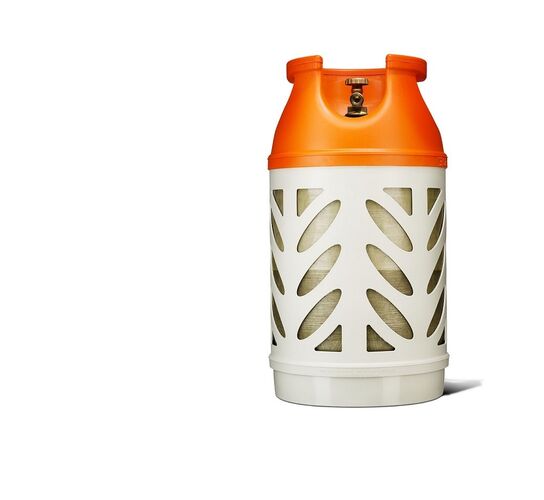

Translucent

Users can easily see the level of gas and know when it is time to refill, which means they will be less likely to run out of gas, eliminating the need for inaccurate gauges.

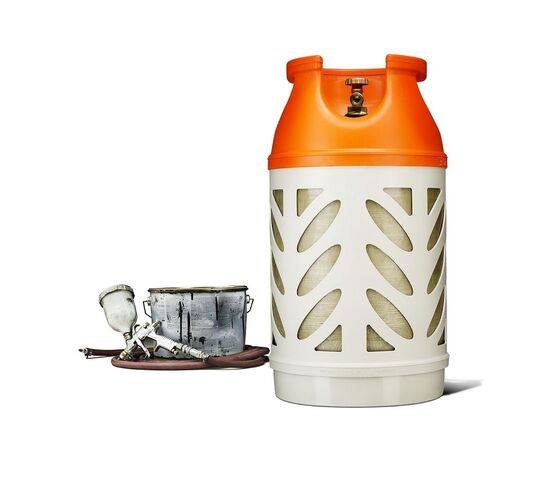

Rust-free

Our cylinders do not rust nor stain surfaces. They eliminate the risk of undetected leaks and toxic residues from the energy intensive refurbishment process.

Product technical specifications

Available in six standard sizes, our cylinders are built based on a 3-part injection molding creating a cylinder that is safe, durable, solid and user-friendly.

Standard cylinders (nominal values)

Product Image

12,5L

Propane Capacity (kg)

5

Butane Capacity (kg)

6

Empty weight ** (kg)

3,4

Water Content (L)

12,5

Diameter (mm)

305

Height (mm})

384

Product Image

18,2L

Propane Capacity (kg)

7,5

Butane Capacity (kg)

7,5

Empty weight ** (kg)

4,1

Water Content (L)

18,2

Diameter (mm)

305

Height (mm})

468

Product Image

24,5 L

Propane Capacity (kg)

10

Butane Capacity (kg)

12

Empty weight ** (kg)

5

Water Content (L)

24,5

Diameter (mm)

305

Height (mm})

571

Product Image

26,2 L

Propane Capacity (kg)

10,7

Butane Capacity (kg)

12,8

Empty weight ** (kg)

5,1

Water Content (L)

26,2

Diameter (mm)

305

Height (mm})

595

Product Image

27,4 L

Propane Capacity (kg)

11,2

Butane Capacity (kg)

12,4

Empty weight ** (kg)

5,3

Water Content (L)

27,4

Diameter (mm)

305

Height (mm})

622

Product Image

33,5 L

Propane Capacity (kg)

14

Butane Capacity (kg)

16,5

Empty weight ** (kg)

7,5

Water Content (L)

33,5

Diameter (mm)

305

Height (mm})

715

** without valve

North American cylinders (nominal values)

Product Image

11 Lbs

Propane Capacity (lbs)

11

Butane Capacity (lbs)

13,2

Tare weight ** (lbs)

8.6

Water capacity (lbs)

27.5

Diameter (in)

12

Height (in})

15.1

Product Image

17 Lbs

Propane Capacity (lbs)

16,85

Butane Capacity (lbs)

18.7

Tare weight ** (lbs)

10.3

Water capacity (lbs)

40.4

Diameter (in)

12

Height (in})

18.3

Product Image

22 Lbs

Propane Capacity (lbs)

22

Butane Capacity (lbs)

26

Tare weight ** (lbs)

12

Water capacity (lbs)

53

Diameter (in)

12

Height (in})

22,5

Product Image

31 Lbs V

Propane Capacity (lbs)

31

Butane Capacity (lbs)

37

Tare weight ** (lbs)

16,3

Water capacity (lbs)

75

Diameter (in)

12

Height (in})

28,3

Product Image

31 Lbs FT

Propane Capacity (lbs)

31

Butane Capacity (lbs)

37

Tare weight ** (lbs)

17,2

Water capacity (lbs)

75

Diameter (in)

12

Height (in})

28,3

** without valve

Approvals & certifications

Our products are approved and certified in close to 100 countries. We are dedicated to the task of achieving local and national approvals and providing support to the local competent authorities.
